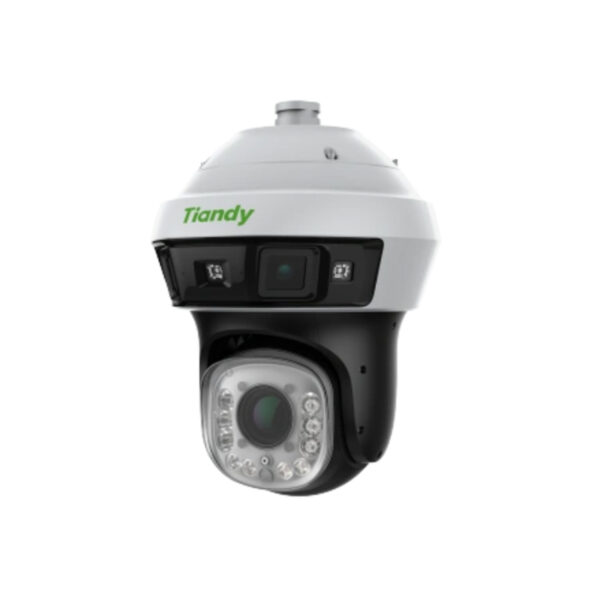

Tiandy 6MP 25X Polar Day Panoramic AEW PTZ Camera TC-H366V
- Description
- Reviews (0)
Description
Camera
| Image Sensor | Panorama:1/1.8″CMOS Detail:1/2.7″CMOS |
| Min. Illumination | Panorama:0.0001lux Detail:0.001Lux |
| Shutter Time | 1s~1/100000s |
| Day&Night | Panorama:Fixed IR-cut Detail:IR-cut filter with auto Switch (ICR) |
| Smart IR | Yes |
| WDR | Panorama:DWDR Detail:120dB |
| S/N | Panorama:42dB Detail:39dB |
Lens
| Focal Length | Panorama:3.3mm Detail:4.8mm~120mm |
| Optical Zoom | Panorama:N/A Detail:25X |
| Digital Zoom | Panorama:N/A Detail:16X |
| Zoom Speed | Panorama:N/A Detail:＜5s |
| Aperture Range | Panorama:F1.0 Detail:F1.67~F3.67 |
| Aperture Type | Panorama:Fixed Detail:Auto(P-Iris) |
| Field of View | Panorama: 190°±10°(H), 75°±10°(V) Detail: 58°~2.8°(H), 33.9°~1.7°(V), 64.8°~3.3°(D) |
| Focus Control | Panorama:N/A Detail:Auto/Semi-auto/Manual |
| Close Focus Distance | Panorama:2000mm Detail:500mm~5000mm |
| DORI Distance | Panorama: Detect:45.5m Observe:18.1m Recognize:9.1m Identify:4.6m Detail: Detect:1980m Observe:785m Recognize:396m Identify:198m |
Pan&Tilt
| Pan Range | 0~360°(P) |
| Pan Speed | Manual Speed:0.1°～200°/s Preset Speed:240°/s |
| Tilt Range | -16°~90°(T) (Default -3°~90°(T)) |
| Tilt Speed | Manual Speed:0.1°～120°/s Preset:180°/s |
| 3D Position | Yes |
| Preset | 500 |
| Cruise | 16(up to 32 presets per cruise) |
| Scan | 8 |
| Pattern | 8,each with 600s memory or 1000 orders |
| Scheduled Task | Preset,Cruise,Scan,Pattern |
| North Point | Yes(Manual setting) |
| Power-off Memory | Yes |
Illuminator
| IR LEDs | Panorama:N/A Detail:10 |
| IR Distance | Panorama:N/A Detail:150m |
| Wavelength | Panorama:N/A Detail:850nm |
| IR Irradiation Angle | Panorama:N/A Detail:Yes |
| White LEDs | Panorama:3 Detail:4 |
| Whitelight Distance | Panorama:30m Detail:30m |
| Laser | Panorama:N/A Detail:N/A |
| Laser Distance | Panorama:N/A Detail:N/A |
Compression Standard
| Video Compression | S+265/H.265/H.264B/H.264M/H.264H/Motion JPEG |
| Video Bit Rate | 32Kbps~16Mbps |
| Audio Compression | G.711A/G.711U/ADPCM_D/AAC_LC |
| Audio Sampling Rate | 8kHz/32kHz/48kHz |
| Max. Resolution | Panorama:3840×1568@30fps Detail:2560×1440@30fps |
| Main Stream | Panorama: PAL:25fps(3840×1568,3632×1480) NTSC:30fps(3840×1568,3632×1480) Detail: PAL:25fps(2560×1440,2304×1296,1920×1080,1280×720) NTSC:30fps(2560×1440,2304×1296,1920×1080,1280×720) |
| Sub Stream | Panorama: PAL:25fps(1200×488,960×392) NTSC:30fps(1200×488,960×392) Detail: PAL:25fps(704×576,704×288,352×288,640×360) NTSC:30fps(704×480,704×240,352×240,640×360) |
| Third Stream | Panorama:N/A Detail: PAL:25fps(704×576,704×288,352×288,640×480) NTSC:30fps(704×480,704×240,352×240,640×480) |
| BLC | Yes |
| HLC | Yes |
| AGC | Yes |
| 3DNR | Yes |
| White Balance | Auto/Semi-Auto/Manual/Sunshine/Nature Light/Warmlight Lamp/Daylight Lamp/Filament Lamp/Lock White Balance |
| ROI | Panorama:7 fixed rectangles and 1 dynamic tracking focus area for each main and secondary stream Detail:7 rectangular 3D fixed focus areas,supporting 1 rectangular dynamic tracking ROI |
| OSD | Panorama: 5 regions(Each region can have a maximum of 127 characters ,up to 5 lines) Detail: 5 regions(Each region can have a maximum of 127 characters ,up to 5 lines); Panorama: 16*16/32*32/48*48/64*64/96*96/adaptable size Detail: 16*16/32*32/48*48/64*64/96*96/adaptable size; Vector/Lattice |
| Defog | Yes |
| Flip | Panorama:N/A Detail:Normal/Horizontal Mirror/Vertical Mirror/Inverted Flip |
| Regional Exposure | Panorama:N/A Detail:Yes |
| Regional Focus | Panorama:N/A Detail:Yes |
| Demist | Yes |
| Privacy Mask | Panorama:8 regions Detail:24 regions(Up to 4 blocks in the same scene) |
