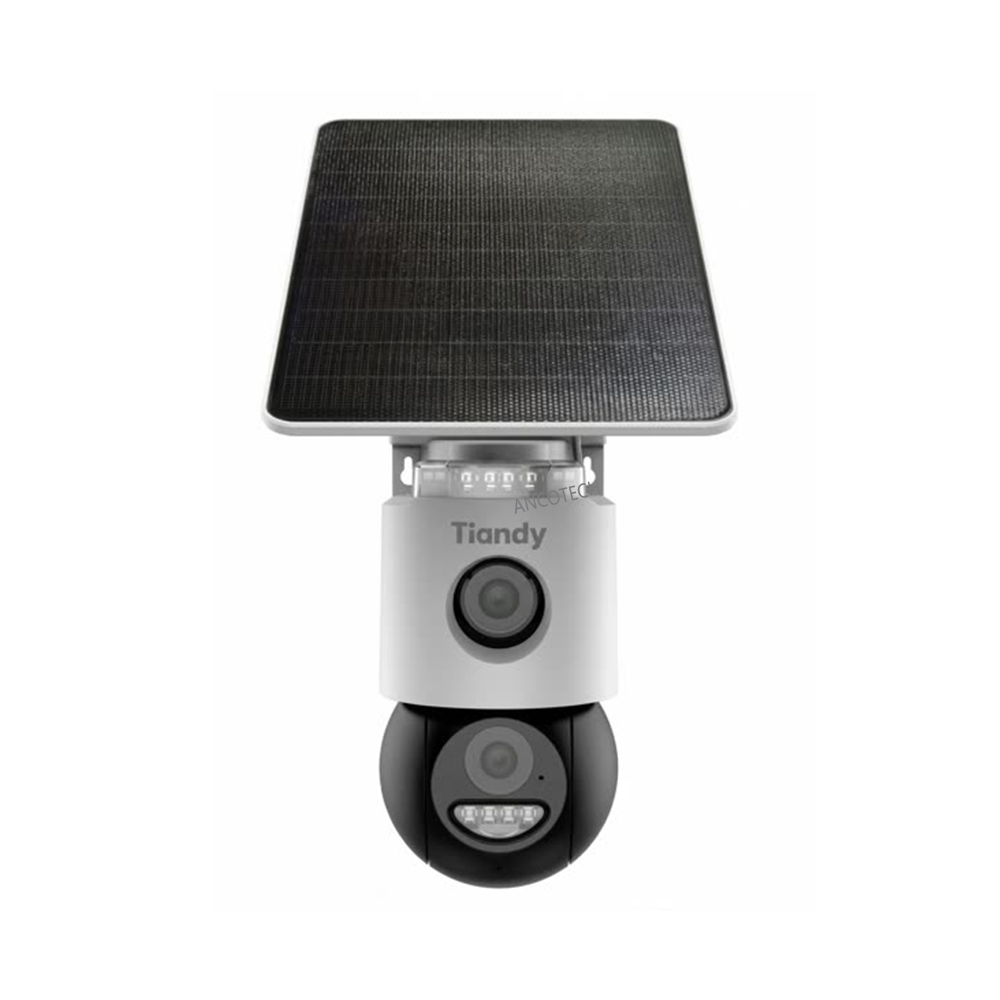

Tiandy 4G Solar Powered Camera 6MP PT Camera 2-Way Talk TD-H673U

Camera
Image Sensor
Panorama: 1/2.9″CMOS
Detail: 1/2.9″CMOS
Min. Illumination Color:0.0004Lux@(F1.0,AGC ON),B/W:0Lux with IR
Shutter Time 1s-1/100000s
Day&Night Fixed IR-cut
WDR DWDR
S/N ≥52dB
Angle Adjustment
Panorama:-60~60°(P)
Details:0~345°(P); Panorama:5~15°
Details:0~90°
Lens
Lens Type Fixed focal lens
Focal Length
Panorama: 4mm
Detail: 4mm
Lens Mount M12
Aperture Range
Panorama: F1.0
Detail: F1.0
Aperture Type Fixed
Field of View
Panorama:79.8°(H);
Detail:79.8°(H); Panorama:44.7°(V);
Detail:44.7°(V); Panorama:90.8°(D);
Detail:90.8°(D)
DORI Distance
Panorama:
Detect: 57.14 m
Observe: 22.68 m
Recognize: 11.43 m
Identify: 5.71 m
Detail:
Detect: 57.14 m
Observe: 22.68 m
Recognize: 11.43 m
Identify: 5.71 m
Pan&Tilt
Pan Speed 30°/s
Tilt Speed 25°/s
Preset 64
Illuminator
IR LEDs
Panorama:4
Detail:4
IR Distance Up to 30m
2026.1.06
Wavelength 850nm
White LEDs
Panorama:4
Detail:4
Whitelight Distance 20m
Red and Blue Alarm Flash Yes
Compression Standard
Video Compression S+265/H.265
Video Bit Rate 1.2Mbps
Audio Compression G.711A
Audio Sampling Rate 16kHz
Max. Resolution
Panorama:3MP,2304×1296@20fps
Detail:3MP,2304×1296@20fps
Main Stream
Panorama:
PAL:20fps(2304×1296)
Detail:
PAL:20fps(2304×1296)
Sub Stream PAL:15fps(704×576)
AGC Yes
3D DNR Yes
White Balance Auto
OSD 48*48; Lattice
Feature
General Alarm Smart Alarm(human and vehicle detection)
Exceptions Alarm Disk Full; Disk R/W Error
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Auto-Tracking Yes
Network
Protocols TCP/IP; UDP; ICMP; DNS; NTP; IPv4; SSH; Unicast
Remote Connection ≤2
Client Easy7 VMS
Mobile Client EasyLive Plus
Interface
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 256GB
General
Operating Temperature
-20℃~50℃(14℉~122℉)
(Charge:-20℃~50℃)
2026.1.06
Operating Humidity ≤95%RH
Storage Temperature -20℃~50℃(14℉~122℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC5V±25%,Max. 10W
Protection Surge500V; ESD6000V; IP65
Boundary Dimensions 183(L)105(W)202(H)mm
Package Dimensions 315(L)225(W)180(H)mm
GrossWeight 1.66kg
