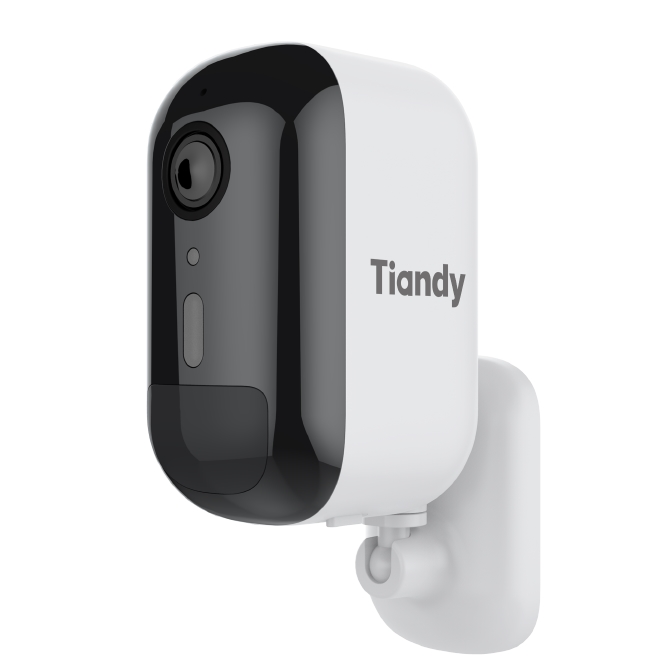

Tiandy 4MP Consumer Camera Built-in Battery Support 2-Way Talk IP65 TD-C65CN

amera
Image Sensor 1/2.8″CMOS
Min. Illumination Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR
Shutter Time 1s~1/100000s
Day&Night IR-cut filter with auto switch (ICR)
WDR DWDR
S/N Yes
Angle Adjustment 0~360°(P); 0~75°(T); 0~360°(R)
Lens
Lens Type Fixed focal lens
Focal Length 2.8mm
Lens Mount M12
Aperture Range F1.6
Aperture Type Fixed
Field of View 103.8°(H); 56.8°(V); 120.4°(D)
DORI Distance
Detect:40.0m
Observe:15.87m
Recognize:8.0m
Identify:4.0m
Illuminator
IR LEDs 2
IR Distance Up to 30m
Wavelength 850nm
White LEDs 2
Whitelight Distance 20m
Compression Standard
Video Compression S+265/H265
Video Bit Rate 32k~2Mbps
Audio Compression G.711A
Audio Sampling Rate 16kHz
Max. Resolution 4MP,2560×1440@20fps
Main Stream
PAL:20fps(2560×1440）
NTSC:20fps(2560×1440）
Sub Stream
PAL:20fps(640×360)
NTSC:20fps(640×360)
AGC Yes
3D DNR Yes
2026.1.06
White Balance Auto
OSD 64*64; Lattice
Feature
Exceptions Alarm Disk Full; Disk R/W Error
Linkage Method Trigger Sound; Trigger Warmlight; Trigger Recording; Trigger Capture
Video Analytics Smart Alarm
Network
Protocols TCP; UDP; ICMP; DHCP; DNS; NTP; IPv4; SSH; Unicast
System Compatibility SDK
Remote Connection ≤2
Client Easy7 VMS
Mobile Client EasyLive Plus
Wi-Fi
Transmission Distance Up tp 50m( based on actual environment)
Wireless Standard IEEE802.11b/ 802.11g/802.11n
Frequency Range 2.4 GHz ~ 2.4835 GHz
Channel Bandwidth 20/40MHz
Wi-Fi Security WPA-PSK/WPA2-PSK
Interface
Built-in Mic 1×Built-in Mic
Built-in Speaker 1×Built-in Loudspeaker
Reset Button Yes
On-board Storage Support microSD/microSDHC/microSDXC card,up to 256GB
RTC Yes
General
Operating Temperature -10℃~50℃(14℉~122℉)
Operating Humidity ≤95%RH
Storage Temperature -10℃~50℃(14℉~122℉)
Storage Humidity 10%~95%RH(non-condensing)
Power Supply DC5V±5% USB type-C,Max.7.5W
Protection ESD6000V; IP65
Boundary Dimensions 78(L)44W)73(H)mm
Package Dimensions 146(L)83(W)108(H)mm
GrossWeight 0.38kg
2026.1.06
